Deep Draw Tools

Deep Draw Tools are specialized press tools used to transform flat sheet metal blanks into deep, hollow, and seamless components through a deep drawing process. These tools are widely used in automotive, electrical, appliance, cookware, and industrial manufacturing industries. Tools are precision-engineered tooling solutions designed for manufacturing seamless and complex-shaped sheet metal components. Manufactured using high-grade tool steel and advanced machining processes, these tools deliver excellent repeatability, durability, and productivity for high-volume production applications. They are ideal for producing cylindrical, rectangular, and custom deep-drawn parts with superior accuracy and finish.

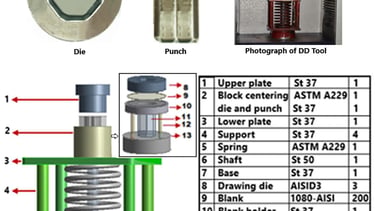

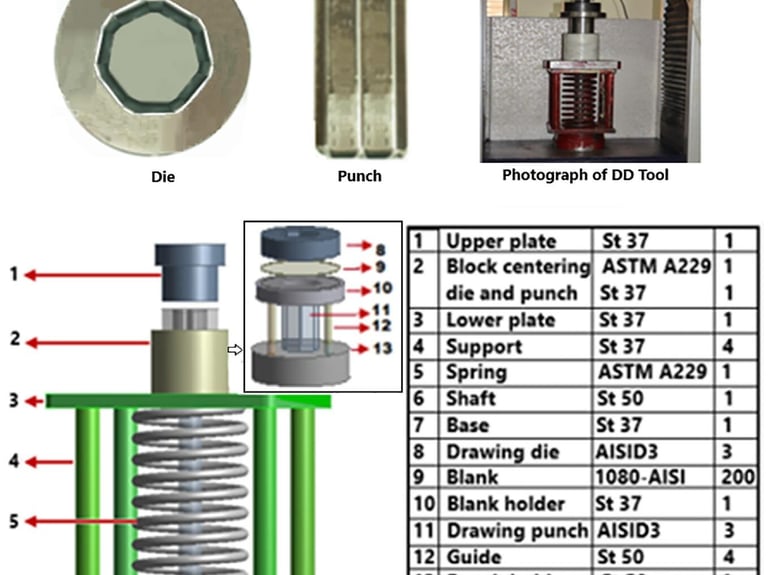

Components of a Deep Draw Tool

• Punch – Forces the sheet metal into the die cavity.

• Die – Forms the external shape of the component.

• Blank Holder – Controls metal flow and prevents wrinkling.

• Pressure Pad – Maintains uniform pressure during drawing.

• Guide Pillars & Bushes – Ensure precise alignment.

• Feed Mechanism
